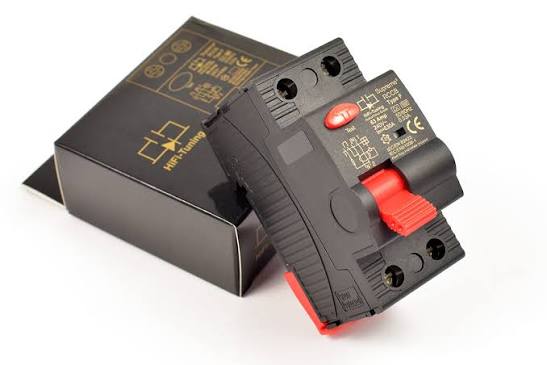

HiFi – Tuning Supreme³ RCCB

Type F RCCB in Supreme³ quality, as a sound upgrade for your entire HiFi / Video systems through the use of large area, solid copper/ silver contact materials, anti-magnetic stainless steel screws, completely in cryogenised quality.

Very low impedance with minimal losses. Type F is designed for detection of normal AC, pulsating DC with DC components and high frequency currents up to 1kHz.

SIMPLY TO REPLACED WITH THE STANDARD ONE BY A QUALIFIED TECHNICIAN

Technical data:

Type (waveform of the earth leakage current) F

Rated current 63A

Poles 1P+N

Rated voltage 230/240V~

Rated frequency 50 / 60Hz

Rated sensitivity 30mA

Frequency response range 0-1000Hz

Insulation voltage 500V

Rated residual making and breaking capacity 500A (In=16-40A) , 630A (In=63A) , 800A (In=80A) , 1000A (In=100A)

Short circuit current 10kA

Break time under ≤0.1s

Rated impulse withstand voltage 4kV

Dielectric test voltage at ind. Freq. for 1 min 2.5kV

Pollution degree 2

Electrical life 2, 000

Mechanical life 10

Fault current indicator Yes

Protection degree IP20

Ambient temperature -25C to 55C

Storage temperating -30C to 70C

Terminal connection type Cable / bus bar

Terminal size top/bottom for cable 1-16mm²

Terminal size top/bottom for bus bar 10/16mm²

Tightening torque 2.5 Nm

Mounting On DIN rail EN 60715 (35mm)

Standards IEC/EN 61008-1 , IEC/EN 62423
